10 mm Embedded Carbide Ball
The UPI/7015 – Brinell indenter is suitable for hardness testing machines of the following manufacturers;*
Innovatest, Struers, Buehler/Wilson, Mitutoyo/Akashi, Future-Tech, Matsuzawa, Affri, Gnehm, Wolpert, Galileo, Hoytom and others, ask our sales department for more details.
UPI/7015 – UPI Laboratories provides top class hardness testing indenters, made out of special alloyed metals, polished to the highest standards and with special treatment penetrator seating. All our hardness testing indenters exceed the ISO / ASTM standards for Rockwell, Brinell, Vickers, and Knoop hardness testing. All indenters are individually packed in protective & anti rust foam cases, labeled with relevant information. All indenters are supplied with ISO/ASTM/NADCAP compliant ISO/IEC 17025 laboratory certificates show individual testing results.
*All trademarks, brand names, and manufacturer marks are used solely for identification purposes and remain the property of their respective owners.

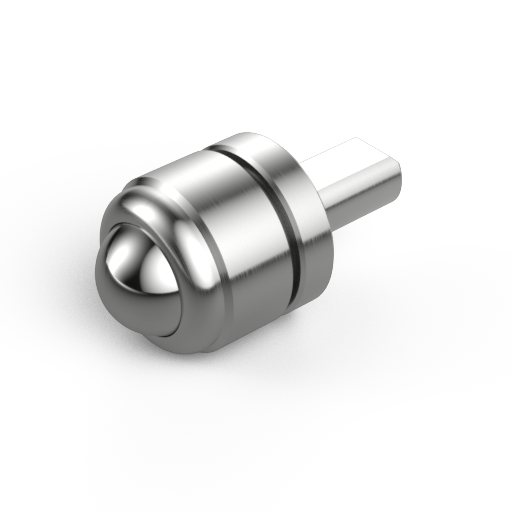

The Brinell indenters consist of a holder, a cap and a ball. The ball may be changed without affecting the assembly’s verification provided the ball conforms to all the requirements of the ISO 6506 and ASTM E10 standards.

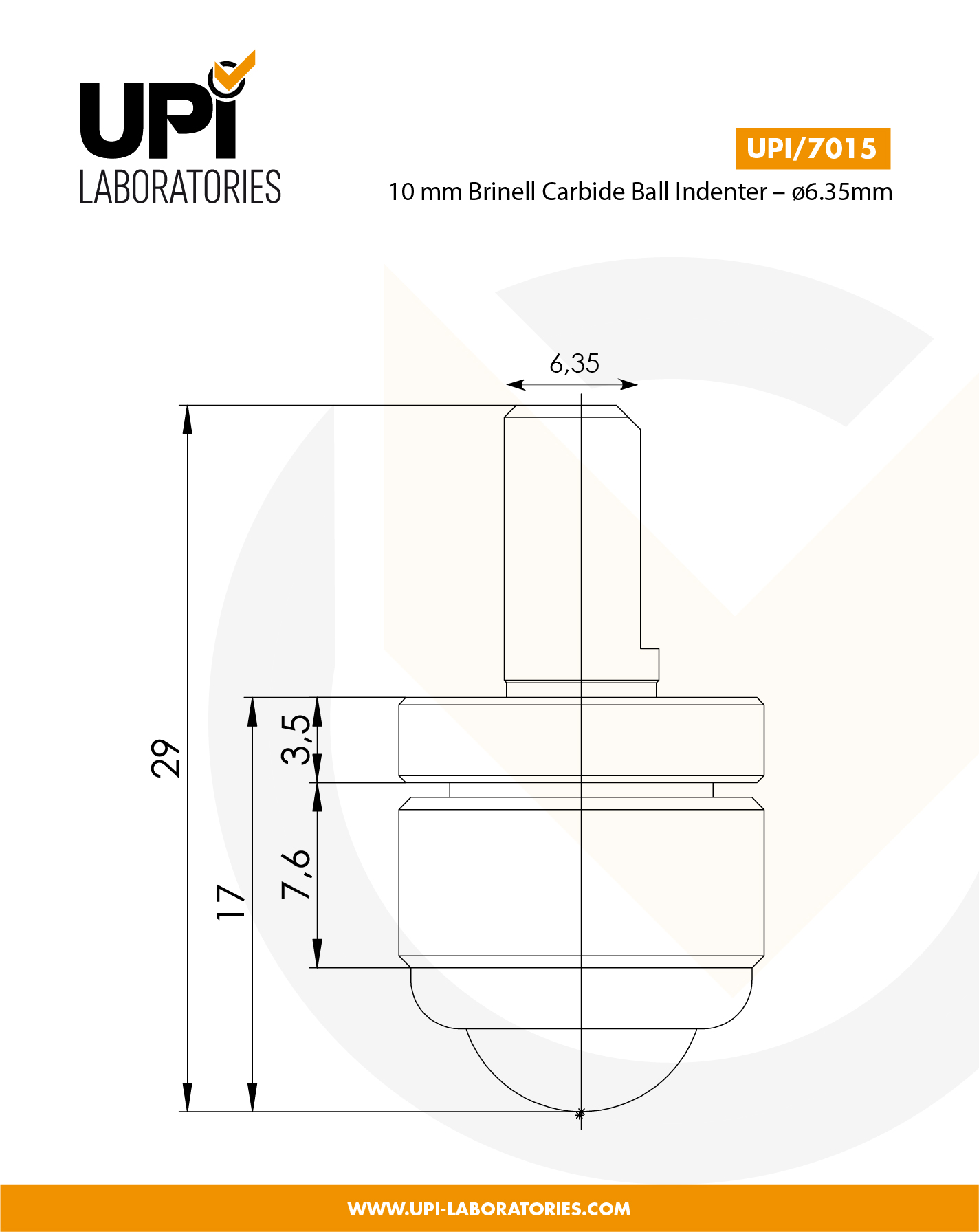

Shaft diameter: ø6.35mm
Ball size: ø10mm
Calibration details: This batch of Brinell indenter balls will be taken from a bonded batch of balls which comply to the requirements of DIN EN ISO 6506-2 and ASTM E10 (for this compliance assessment measurement uncertainty was not taken into account) and will be calibrated and certified for diameter, hardness, roughness and density, by UPI Laboratories.
Calibration temp.: (23 ± 2) °C
Relative humidity: < 70 %rh
Uncertainty: The reported expanded uncertainty is based on the standard uncertainty of the measurement multiplied by a coverage factor k, such that the coverage propability corresponds to approximately 95%. The standard uncertainty is determined in accordance with EA 04/2.
Traceability: The measurements are executed using standards for which the traceability to (inter) national standards has been demonstrated towards the RvA.
